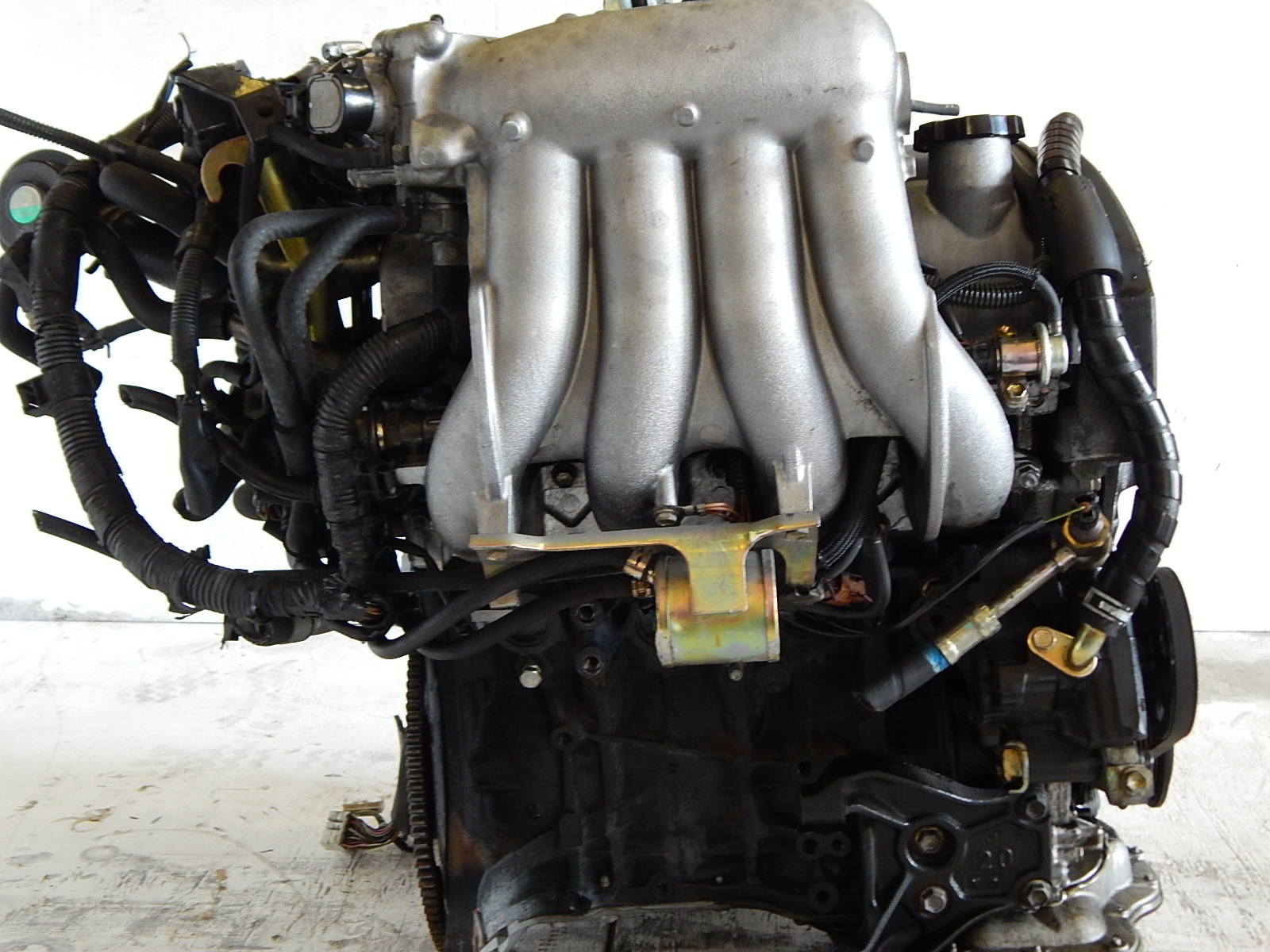

( SAMPLE PHOTOS ) This is for a used JDM 1997-2001 Toyota 3SGTE 4th generation Caldina ST215 (GT-T) engine only.
60 DAY WARRANTY
- 260PS(256HP) @ 6200rpm
- 324 N·m (239 lb·ft) @ 4400rpm
The fourth-generation engine uses a proprietary CT15B turbocharger. This generation was used in the 1997-2002 ST215 Caldina GT-T AWD Wagon. The exhaust housing is actually cast into the cylinder exhaust manifold, rather than the normal practice of a separate turbine housing after the cylinder exhaust manifold. Due to this, the CT15 is backwards compatible with the third-generation 3S-GTE cylinder head only, not either the first or second generation. Intake charge was cooled by an air-to-air top-mounted intercooler fed through a new side-feed intake manifold. This generation utilizes a coil-on-plug ignition system and 550cc injectors. Boost remains at 13-14psi, however overboost fuel cut is increased to 21psi. Compression is increased to 9:1 and produces 260PS (256 hp) and 324N·m (239 lb-ft).
(THIS ENGINE IS HAND PICKED AND IMPORTED FROM JAPAN WITH APPROX. 45-65 THOUSAND MILES ON IT)
