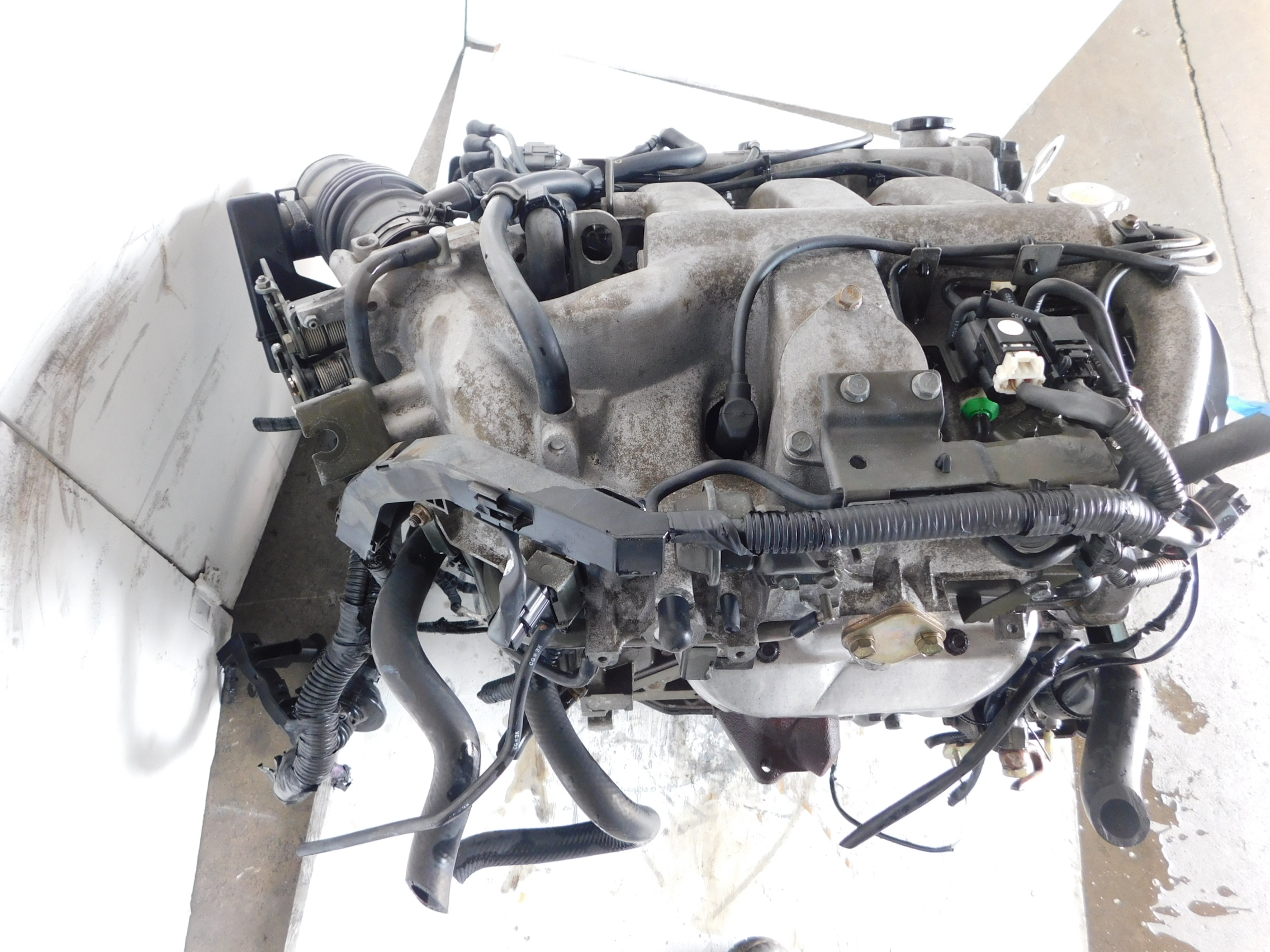

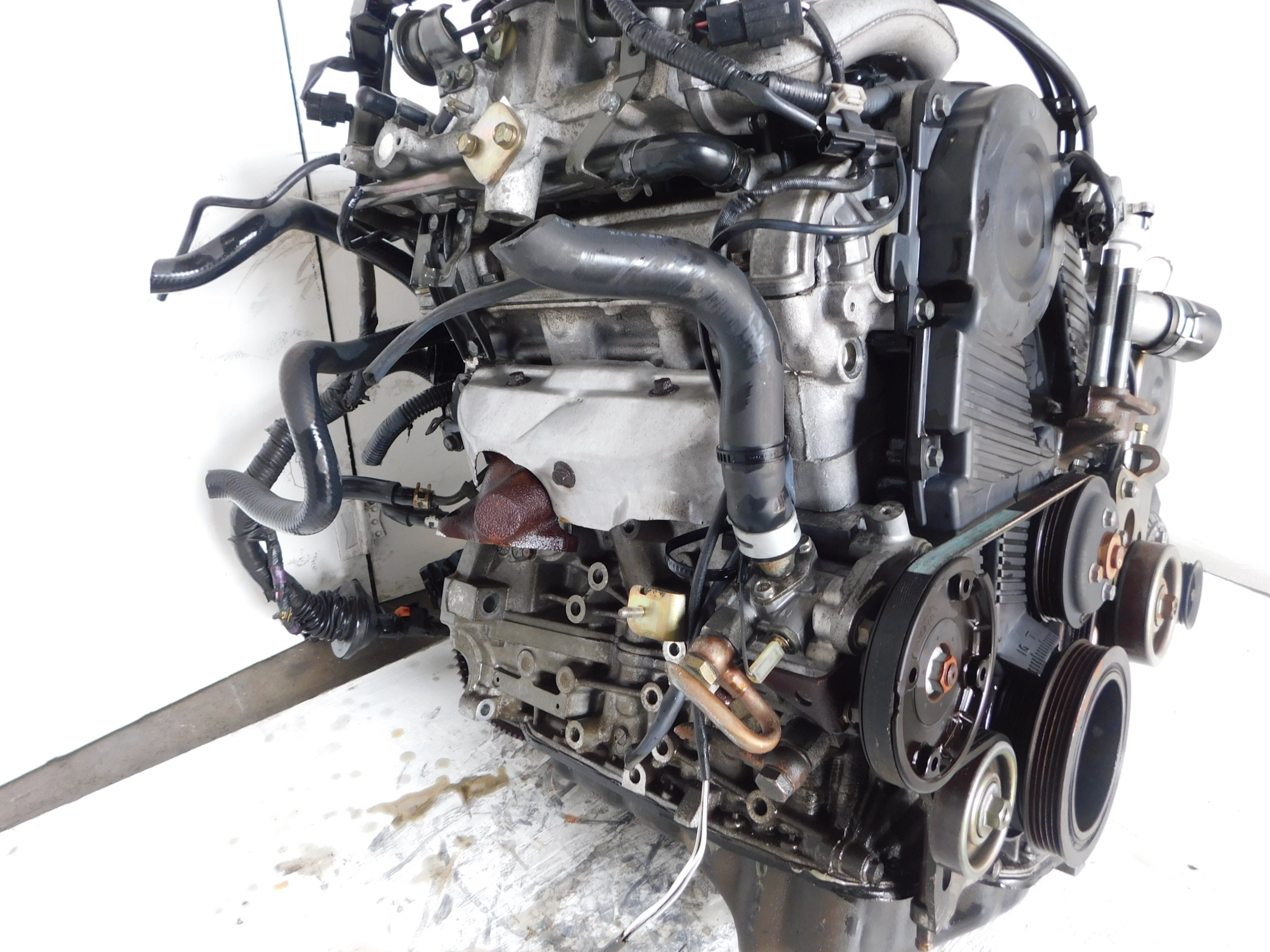

( SAMPLE PHOTOS ) This is for a used JDM 1992-2001 Mazda 626, MX6, Millenia, & For Probe 2.5L v6 engine only (KLZE).
90 DAY WARRANTY
The 2.5 L (2497 cc) KL family uses
- Bore: 84.5 mm (3.33 in)
- Stroke: 74.2 mm (2.92 in)
It includes the Japan-only KL-ZE, which produced 199 hp (149 kW) and 165 lb·ft (224 Nm). Another variant, the KL-DE (also known as the KL-03 outside the USA, and fitted to 2.5 litre Ford Probes) was the worldwide version, with 164-174 hp in various applications. In 1998 a revised version of the KL known as the KL-G4 was used in the 626. It featured solid lifters, a cast crankshaft to reduce rotating mass and a reworked intake system. The distributor was replaced with a Ford EDIS coil-pack ignition.
Mazda introduced a key technology with these engines, known as the Variable Resonance Induction System (VRIS). A series of two butterfly valves coupled with electronically controlled actuators varied the volume and length of a resonant chamber within the intake manifold. The valves actuate at particular engine frequencies (i.e. rpms) to produce optimal torque/horsepower output at any given engine speed. The valve operates to create three specific first-order resonant frequencies that increase cylinder air charge. All three resonances are used from 0 to 6250 rpm (6800 for the KL-ZE). Above that threshold, the first primary resonant chamber is again used, but at this engine speed the pressure wave from the second-order resonant frequency aids in charging the cylinder.
OTHER APPLICATIONS:
- 1993-1997 Mazda MX-6 LS (A spec)
- 1993-1997 Ford Probe GT
- 1992-1995 Ford Telstar TX5 Ghia, TX5 Ghia 4ws
- 1993-1997 Mazda 626 ES, LX (after 1994)
- 1995-2002 Mazda Millenia L
(THIS ENGINE IS HAND PICKED AND IMPORTED FROM JAPAN WITH APPROX. 45-65 THOUSAND MILES ON IT)
